Here we compute the evoked from raw for the Brainstorm tutorial dataset. For comparison, see [1] and:
| [1] | Tadel F, Baillet S, Mosher JC, Pantazis D, Leahy RM. Brainstorm: A User-Friendly Application for MEG/EEG Analysis. Computational Intelligence and Neuroscience, vol. 2011, Article ID 879716, 13 pages, 2011. doi:10.1155/2011/879716 |
Out:
Opening raw data file /home/ubuntu/mne_data/MNE-brainstorm-data/bst_raw/MEG/bst_raw/subj001_somatosensory_20111109_01_AUX-f_raw.fif...
Read 5 compensation matrices
Range : 0 ... 431999 = 0.000 ... 359.999 secs
Ready.
Current compensation grade : 3
Reading 0 ... 431999 = 0.000 ... 359.999 secs...
Adding average EEG reference projection.
1 projection items deactivated
Average reference projection was added, but hasn't been applied yet. Use the .apply_proj() method function to apply projections.
Effective window size : 1.707 (s)
Effective window size : 1.707 (s)
Setting up band-stop filter
Filter length of 15840 samples (13.200 sec) selected
200 events found
Events id: [1 2]
102 matching events found
1 projection items activated
Rejecting epoch based on EOG : [u'EEG058']
Rejecting epoch based on EOG : [u'EEG058']
No gradiometers found. Forcing n_grad to 0
No EEG channels found. Forcing n_eeg to 0
Adding projection: axial--0.100-0.000-PCA-01
Adding projection: axial--0.100-0.000-PCA-02
2 projection items deactivated
Created an SSP operator (subspace dimension = 2)
3 projection items activated
SSP projectors applied...
# Authors: Mainak Jas <mainak.jas@telecom-paristech.fr>
#
# License: BSD (3-clause)
import numpy as np
import mne
from mne.datasets.brainstorm import bst_raw
print(__doc__)
tmin, tmax, event_id = -0.1, 0.3, 2 # take right-hand somato
reject = dict(mag=4e-12, eog=250e-6)
data_path = bst_raw.data_path()
raw_fname = data_path + '/MEG/bst_raw/' + \
'subj001_somatosensory_20111109_01_AUX-f_raw.fif'
raw = mne.io.read_raw_fif(raw_fname, preload=True)

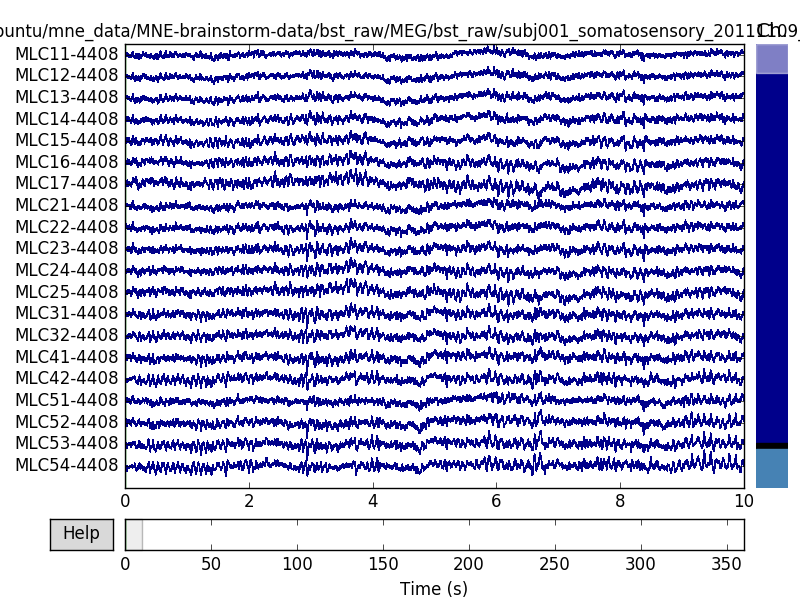

raw.plot()
# set EOG channel
raw.set_channel_types({'EEG058': 'eog'})
raw.set_eeg_reference()

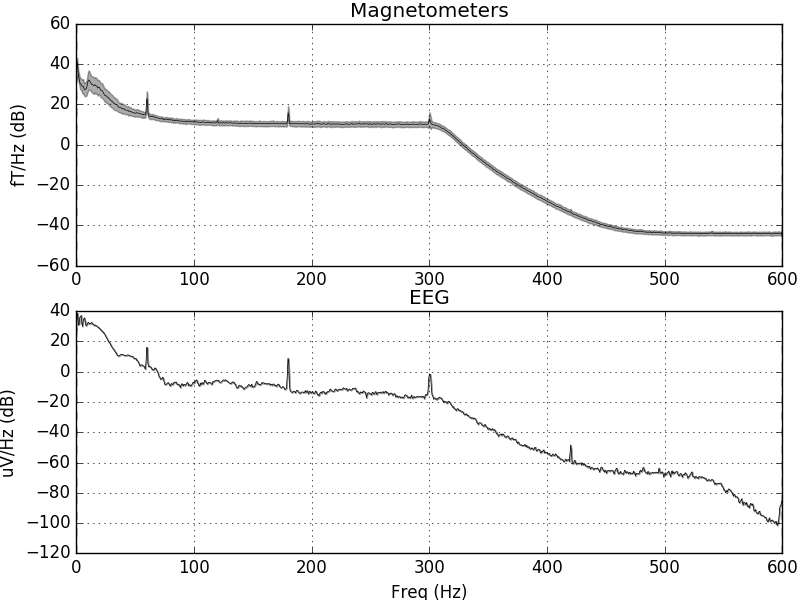

# show power line interference and remove it
raw.plot_psd(tmax=60.)
raw.notch_filter(np.arange(60, 181, 60))
events = mne.find_events(raw, stim_channel='UPPT001')
# pick MEG channels
picks = mne.pick_types(raw.info, meg=True, eeg=False, stim=False, eog=True,
exclude='bads')
# Compute epochs
epochs = mne.Epochs(raw, events, event_id, tmin, tmax, picks=picks,
baseline=(None, 0), reject=reject, preload=False)
# compute evoked
evoked = epochs.average()
# remove physiological artifacts (eyeblinks, heartbeats) using SSP on baseline
evoked.add_proj(mne.compute_proj_evoked(evoked.copy().crop(tmax=0)))
evoked.apply_proj()
# fix stim artifact
mne.preprocessing.fix_stim_artifact(evoked)
# correct delays due to hardware (stim artifact is at 4 ms)
evoked.shift_time(-0.004)

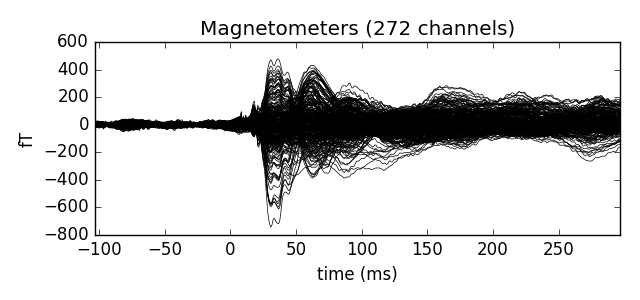

# plot the result
evoked.plot()

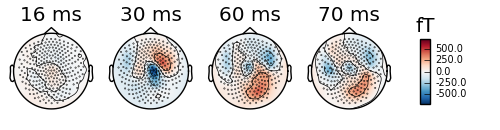

# show topomaps
evoked.plot_topomap(times=np.array([0.016, 0.030, 0.060, 0.070]))
Total running time of the script: ( 0 minutes 23.285 seconds)
