PSFs are computed for four labels in the MNE sample data set for linear inverse operators (MNE, dSPM, sLORETA). PSFs describe the spread of activation from one label across the cortical surface.
Out:
Reading forward solution from /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis-meg-eeg-oct-6-fwd.fif...
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
2 source spaces read
Desired named matrix (kind = 3523) not available
Read MEG forward solution (7498 sources, 306 channels, free orientations)
Desired named matrix (kind = 3523) not available
Read EEG forward solution (7498 sources, 60 channels, free orientations)
MEG and EEG forward solutions combined
Source spaces transformed to the forward solution coordinate frame
Converting to surface-based source orientations...
Average patch normals will be employed in the rotation to the local surface coordinates....
[done]
Reading inverse operator decomposition from /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis-meg-eeg-oct-6-meg-eeg-inv.fif...
Reading inverse operator info...
[done]
Reading inverse operator decomposition...
[done]
364 x 364 full covariance (kind = 1) found.
Read a total of 4 projection items:
PCA-v1 (1 x 102) active
PCA-v2 (1 x 102) active
PCA-v3 (1 x 102) active
Average EEG reference (1 x 60) active
Noise covariance matrix read.
22494 x 22494 diagonal covariance (kind = 2) found.
Source covariance matrix read.
22494 x 22494 diagonal covariance (kind = 6) found.
Orientation priors read.
22494 x 22494 diagonal covariance (kind = 5) found.
Depth priors read.
Did not find the desired covariance matrix (kind = 3)
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
2 source spaces read
Read a total of 4 projection items:
PCA-v1 (1 x 102) active
PCA-v2 (1 x 102) active
PCA-v3 (1 x 102) active
Average EEG reference (1 x 60) active
Source spaces transformed to the inverse solution coordinate frame
Reading inverse operator decomposition from /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis-meg-oct-6-meg-inv.fif...
Reading inverse operator info...
[done]
Reading inverse operator decomposition...
[done]
305 x 305 full covariance (kind = 1) found.
Read a total of 4 projection items:
PCA-v1 (1 x 102) active
PCA-v2 (1 x 102) active
PCA-v3 (1 x 102) active
Average EEG reference (1 x 60) active
Noise covariance matrix read.
22494 x 22494 diagonal covariance (kind = 2) found.
Source covariance matrix read.
22494 x 22494 diagonal covariance (kind = 6) found.
Orientation priors read.
22494 x 22494 diagonal covariance (kind = 5) found.
Depth priors read.
Did not find the desired covariance matrix (kind = 3)
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
2 source spaces read
Read a total of 4 projection items:
PCA-v1 (1 x 102) active
PCA-v2 (1 x 102) active
PCA-v3 (1 x 102) active
Average EEG reference (1 x 60) active
Source spaces transformed to the inverse solution coordinate frame
About to process 4 labels
Converting to surface-based source orientations...
Average patch normals will be employed in the rotation to the local surface coordinates....
[done]
<Label | unknown, u'Aud-rh', rh : 883 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 1978.94911214 1218.86857762 528.31045019 157.61122813 75.27112997]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 68.5% variance in label.
<Label | unknown, u'Aud-lh', lh : 1097 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 1760.92377927 1439.64644748 743.05280713 156.72701522 80.65306411]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 53.8% variance in label.
<Label | unknown, u'Vis-rh', rh : 623 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 979.45596116 579.38306825 218.70036716 45.46351293 14.07251956]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 71.3% variance in label.
<Label | unknown, u'Vis-lh', lh : 1253 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 1261.76052917 659.9069819 559.49851826 70.12488601 44.44986223]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 67.7% variance in label.
About to apply inverse operator for method='MNE' and lambda2=0.111111111111
Preparing the inverse operator for use...
Scaled noise and source covariance from nave = 1 to nave = 1
Created the regularized inverter
Created an SSP operator (subspace dimension = 4)
Created the whitener using a full noise covariance matrix (4 small eigenvalues omitted)
Picked 364 channels from the data
Computing inverse...
(eigenleads need to be weighted)...
[done]
About to process 4 labels
Converting to surface-based source orientations...
Average patch normals will be employed in the rotation to the local surface coordinates....
[done]
<Label | unknown, u'Aud-rh', rh : 883 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 0.00274084 0.00179732 0.00066999 0.00021198 0.00018807]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 66.4% variance in label.
<Label | unknown, u'Aud-lh', lh : 1097 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 0.00223286 0.00095637 0.00044671 0.0002232 0.00012375]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 80.6% variance in label.
<Label | unknown, u'Vis-rh', rh : 623 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 1.19709958e-03 8.38498995e-04 2.75738170e-04 1.07129273e-04
9.00191185e-05]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 64.1% variance in label.
<Label | unknown, u'Vis-lh', lh : 1253 vertices>
Computing SVD within labels, using 1 component(s)
First 5 singular values: [ 0.0015879 0.00091905 0.00027931 0.0001392 0.00012593]
(This tells you something about variability of forward solutions in sub-leadfield for label)
Your 1 component(s) explain(s) 72.1% variance in label.
About to apply inverse operator for method='MNE' and lambda2=0.111111111111
Preparing the inverse operator for use...
Scaled noise and source covariance from nave = 1 to nave = 1
Created the regularized inverter
Created an SSP operator (subspace dimension = 3)
Created the whitener using a full noise covariance matrix (3 small eigenvalues omitted)
Picked 305 channels from the data
Computing inverse...
(eigenleads need to be weighted)...
[done]
Updating smoothing matrix, be patient..
Smoothing matrix creation, step 1
Smoothing matrix creation, step 2
Smoothing matrix creation, step 3
Smoothing matrix creation, step 4
Smoothing matrix creation, step 5
Smoothing matrix creation, step 6
Smoothing matrix creation, step 7
Smoothing matrix creation, step 8
Smoothing matrix creation, step 9
Smoothing matrix creation, step 10
colormap: fmin=-3.61e-02 fmid=0.00e+00 fmax=3.61e-02 transparent=0
Updating smoothing matrix, be patient..
Smoothing matrix creation, step 1
Smoothing matrix creation, step 2
Smoothing matrix creation, step 3
Smoothing matrix creation, step 4
Smoothing matrix creation, step 5
Smoothing matrix creation, step 6
Smoothing matrix creation, step 7
Smoothing matrix creation, step 8
Smoothing matrix creation, step 9
Smoothing matrix creation, step 10
colormap: fmin=-2.52e-02 fmid=0.00e+00 fmax=2.52e-02 transparent=0
# Authors: Olaf Hauk <olaf.hauk@mrc-cbu.cam.ac.uk>
# Alexandre Gramfort <alexandre.gramfort@telecom-paristech.fr>
#
# License: BSD (3-clause)
from mayavi import mlab
import mne
from mne.datasets import sample
from mne.minimum_norm import read_inverse_operator, point_spread_function
print(__doc__)
data_path = sample.data_path()
subjects_dir = data_path + '/subjects/'
fname_fwd = data_path + '/MEG/sample/sample_audvis-meg-eeg-oct-6-fwd.fif'
fname_inv_eegmeg = (data_path +
'/MEG/sample/sample_audvis-meg-eeg-oct-6-meg-eeg-inv.fif')
fname_inv_meg = data_path + '/MEG/sample/sample_audvis-meg-oct-6-meg-inv.fif'
fname_label = [data_path + '/MEG/sample/labels/Aud-rh.label',
data_path + '/MEG/sample/labels/Aud-lh.label',
data_path + '/MEG/sample/labels/Vis-rh.label',
data_path + '/MEG/sample/labels/Vis-lh.label']
# read forward solution
forward = mne.read_forward_solution(fname_fwd, force_fixed=False,
surf_ori=True)
# read inverse operators
inverse_operator_eegmeg = read_inverse_operator(fname_inv_eegmeg)
inverse_operator_meg = read_inverse_operator(fname_inv_meg)
# read label(s)
labels = [mne.read_label(ss) for ss in fname_label]
# regularisation parameter
snr = 3.0
lambda2 = 1.0 / snr ** 2
method = 'MNE' # can be 'MNE' or 'sLORETA'
mode = 'svd'
n_svd_comp = 1
stc_psf_eegmeg, _ = point_spread_function(
inverse_operator_eegmeg, forward, method=method, labels=labels,
lambda2=lambda2, pick_ori='normal', mode=mode, n_svd_comp=n_svd_comp)
stc_psf_meg, _ = point_spread_function(
inverse_operator_meg, forward, method=method, labels=labels,
lambda2=lambda2, pick_ori='normal', mode=mode, n_svd_comp=n_svd_comp)
# save for viewing in mne_analyze in order of labels in 'labels'
# last sample is average across PSFs
# stc_psf_eegmeg.save('psf_eegmeg')
# stc_psf_meg.save('psf_meg')

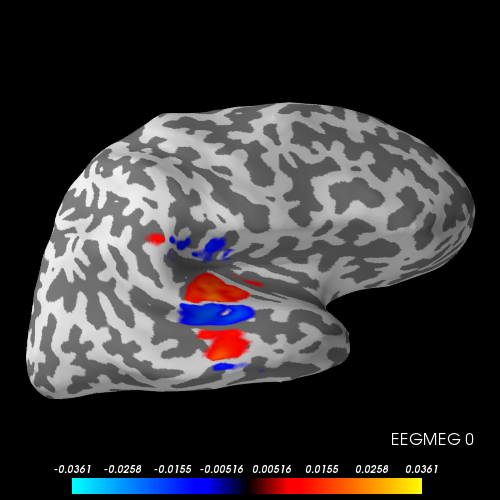

time_label = "EEGMEG %d"
brain_eegmeg = stc_psf_eegmeg.plot(hemi='rh', subjects_dir=subjects_dir,
time_label=time_label,
figure=mlab.figure(size=(500, 500)))

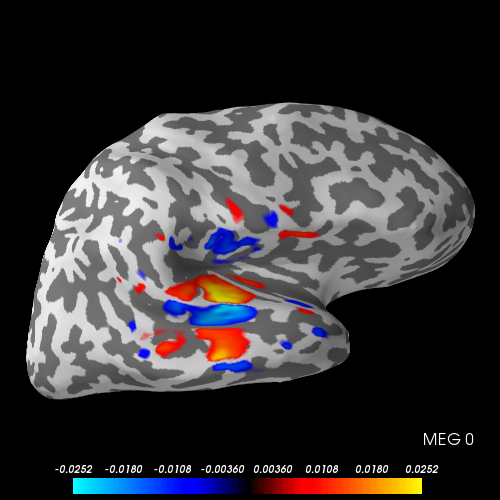

time_label = "MEG %d"
brain_meg = stc_psf_meg.plot(hemi='rh', subjects_dir=subjects_dir,
time_label=time_label,
figure=mlab.figure(size=(500, 500)))
# The PSF is centred around the right auditory cortex label,
# but clearly extends beyond it.
# It also contains "sidelobes" or "ghost sources"
# in middle/superior temporal lobe.
# For the Aud-RH example, MEG and EEGMEG do not seem to differ a lot,
# but the addition of EEG still decreases point-spread to distant areas
# (e.g. to ATL and IFG).
# The chosen labels are quite far apart from each other, so their PSFs
# do not overlap (check in mne_analyze)
Total running time of the script: ( 0 minutes 21.913 seconds)
