This script shows how to define higher order events based on time lag between reference and target events. For illustration, we will put face stimuli presented into two classes, that is 1) followed by an early button press (within 590 milliseconds) and followed by a late button press (later than 590 milliseconds). Finally, we will visualize the evoked responses to both ‘quickly-processed’ and ‘slowly-processed’ face stimuli.
# Authors: Denis Engemann <denis.engemann@gmail.com>
#
# License: BSD (3-clause)
import mne
from mne import io
from mne.event import define_target_events
from mne.datasets import sample
import matplotlib.pyplot as plt
print(__doc__)
data_path = sample.data_path()
Set parameters
raw_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw.fif'
event_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw-eve.fif'
# Setup for reading the raw data
raw = io.read_raw_fif(raw_fname)
events = mne.read_events(event_fname)
# Set up pick list: EEG + STI 014 - bad channels (modify to your needs)
include = [] # or stim channels ['STI 014']
raw.info['bads'] += ['EEG 053'] # bads
# pick MEG channels
picks = mne.pick_types(raw.info, meg='mag', eeg=False, stim=False, eog=True,
include=include, exclude='bads')
Out:
Opening raw data file /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis_filt-0-40_raw.fif...
Read a total of 4 projection items:
PCA-v1 (1 x 102) idle
PCA-v2 (1 x 102) idle
PCA-v3 (1 x 102) idle
Average EEG reference (1 x 60) idle
Range : 6450 ... 48149 = 42.956 ... 320.665 secs
Ready.
Current compensation grade : 0
Find stimulus event followed by quick button presses
reference_id = 5 # presentation of a smiley face
target_id = 32 # button press
sfreq = raw.info['sfreq'] # sampling rate
tmin = 0.1 # trials leading to very early responses will be rejected
tmax = 0.59 # ignore face stimuli followed by button press later than 590 ms
new_id = 42 # the new event id for a hit. If None, reference_id is used.
fill_na = 99 # the fill value for misses
events_, lag = define_target_events(events, reference_id, target_id,
sfreq, tmin, tmax, new_id, fill_na)
print(events_) # The 99 indicates missing or too late button presses
# besides the events also the lag between target and reference is returned
# this could e.g. be used as parametric regressor in subsequent analyses.
print(lag[lag != fill_na]) # lag in milliseconds
# #############################################################################
# Construct epochs
tmin_ = -0.2
tmax_ = 0.4
event_id = dict(early=new_id, late=fill_na)
epochs = mne.Epochs(raw, events_, event_id, tmin_,
tmax_, picks=picks, baseline=(None, 0),
reject=dict(mag=4e-12))
# average epochs and get an Evoked dataset.
early, late = [epochs[k].average() for k in event_id]
Out:
[[ 8522 0 99]
[10649 0 42]
[12859 0 99]
[14830 0 99]
[16850 0 99]
[18826 0 42]
[21224 0 42]
[23200 0 42]
[25272 0 99]
[27243 0 99]
[29525 0 42]
[31530 0 42]
[33481 0 99]
[35611 0 99]
[38007 0 42]]
[ nan 566.08643728 nan nan nan
532.78723509 352.97154325 359.63138369 nan nan
446.20930939 579.40611816 nan nan 512.80771377]
15 matching events found
Created an SSP operator (subspace dimension = 3)
4 projection items activated

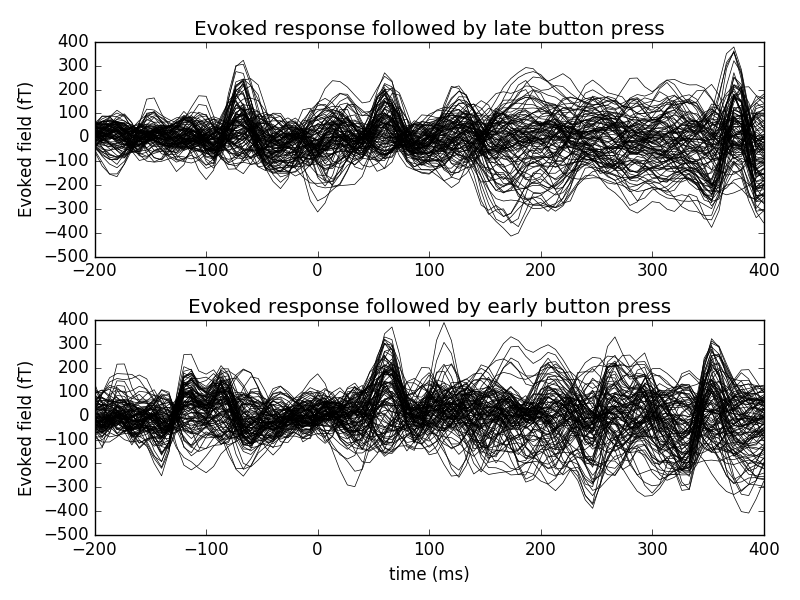

View evoked response
times = 1e3 * epochs.times # time in milliseconds
title = 'Evoked response followed by %s button press'
plt.clf()
ax = plt.subplot(2, 1, 1)
early.plot(axes=ax)
plt.title(title % 'late')
plt.ylabel('Evoked field (fT)')
ax = plt.subplot(2, 1, 2)
late.plot(axes=ax)
plt.title(title % 'early')
plt.ylabel('Evoked field (fT)')
plt.show()
Total running time of the script: ( 0 minutes 1.035 seconds)
