Locate peaks of EOG to spot blinks and general EOG artifacts.
# Authors: Alexandre Gramfort <alexandre.gramfort@telecom-paristech.fr>
#
# License: BSD (3-clause)
import numpy as np
import matplotlib.pyplot as plt
import mne
from mne import io
from mne.datasets import sample
print(__doc__)
data_path = sample.data_path()
Set parameters
raw_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw.fif'
# Setup for reading the raw data
raw = io.read_raw_fif(raw_fname)
event_id = 998
eog_events = mne.preprocessing.find_eog_events(raw, event_id)
# Read epochs
picks = mne.pick_types(raw.info, meg=False, eeg=False, stim=False, eog=True,
exclude='bads')
tmin, tmax = -0.2, 0.2
epochs = mne.Epochs(raw, eog_events, event_id, tmin, tmax, picks=picks)
data = epochs.get_data()
print("Number of detected EOG artifacts : %d" % len(data))
Out:
Opening raw data file /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis_filt-0-40_raw.fif...
Read a total of 4 projection items:
PCA-v1 (1 x 102) idle
PCA-v2 (1 x 102) idle
PCA-v3 (1 x 102) idle
Average EEG reference (1 x 60) idle
Range : 6450 ... 48149 = 42.956 ... 320.665 secs
Ready.
Current compensation grade : 0
EOG channel index for this subject is: [375]
Filtering the data to remove DC offset to help distinguish blinks from saccades
Setting up band-pass filter from 2 - 45 Hz
Setting up band-pass filter from 1 - 10 Hz
Now detecting blinks and generating corresponding events
Number of EOG events detected : 46
46 matching events found
4 projection items activated
Loading data for 46 events and 61 original time points ...
0 bad epochs dropped
Number of detected EOG artifacts : 46

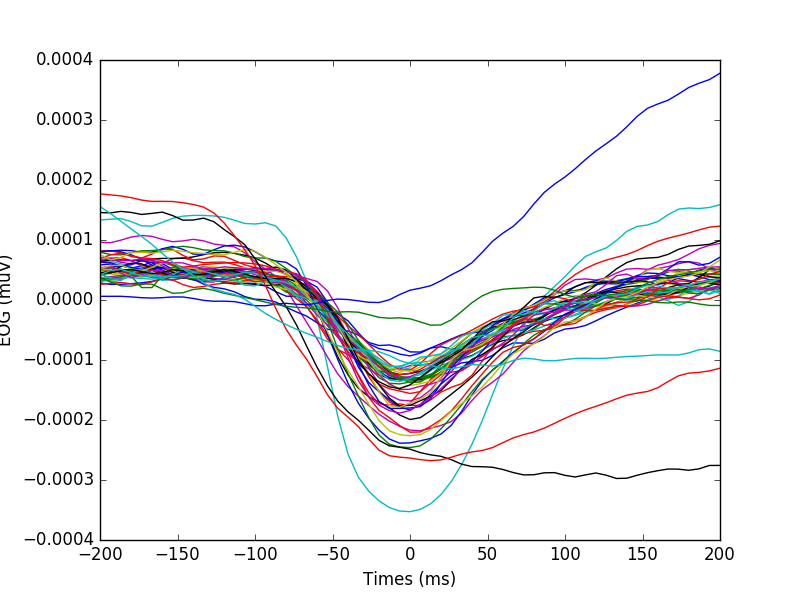

Plot EOG artifacts
plt.plot(1e3 * epochs.times, np.squeeze(data).T)
plt.xlabel('Times (ms)')
plt.ylabel('EOG (muV)')
plt.show()
Total running time of the script: ( 0 minutes 0.470 seconds)
