Permutation T-test on sensor data¶

# Authors: Alexandre Gramfort <alexandre.gramfort@telecom-paristech.fr>
#
# License: BSD (3-clause)

import numpy as np

import mne
from mne import io
from mne.stats import permutation_t_test
from mne.datasets import sample

print(__doc__)

data_path = sample.data_path()
raw_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw.fif'
event_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw-eve.fif'
event_id = 1
tmin = -0.2
tmax = 0.5

#   Setup for reading the raw data
raw = io.read_raw_fif(raw_fname)
events = mne.read_events(event_fname)

#   Set up pick list: MEG + STI 014 - bad channels (modify to your needs)
include = []  # or stim channel ['STI 014']
raw.info['bads'] += ['MEG 2443', 'EEG 053']  # bads + 2 more

# pick MEG Gradiometers
picks = mne.pick_types(raw.info, meg='grad', eeg=False, stim=False, eog=True,
                       include=include, exclude='bads')
epochs = mne.Epochs(raw, events, event_id, tmin, tmax, picks=picks,
                    baseline=(None, 0), reject=dict(grad=4000e-13, eog=150e-6))
data = epochs.get_data()
times = epochs.times

temporal_mask = np.logical_and(0.04 <= times, times <= 0.06)
data = np.mean(data[:, :, temporal_mask], axis=2)

n_permutations = 50000
T0, p_values, H0 = permutation_t_test(data, n_permutations, n_jobs=1)

significant_sensors = picks[p_values <= 0.05]
significant_sensors_names = [raw.ch_names[k] for k in significant_sensors]

print("Number of significant sensors : %d" % len(significant_sensors))
print("Sensors names : %s" % significant_sensors_names)

evoked = mne.EvokedArray(-np.log10(p_values)[:, np.newaxis],
                         epochs.info, tmin=0.)

# Extract mask and indices of active sensors in layout
stats_picks = mne.pick_channels(evoked.ch_names, significant_sensors_names)
mask = p_values[:, np.newaxis] <= 0.05

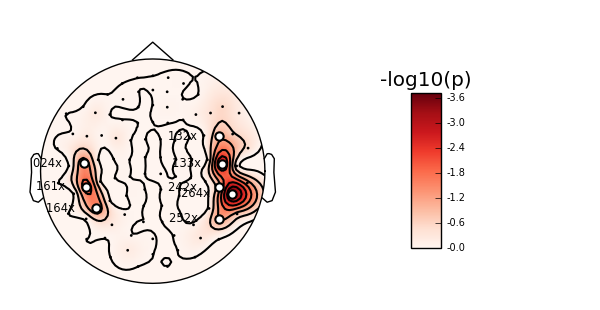

evoked.plot_topomap(ch_type='grad', times=[0], scale=1,
                    time_format=None, cmap='Reds', vmin=0., vmax=np.max,
                    unit='-log10(p)', cbar_fmt='-%0.1f', mask=mask,
                    size=3, show_names=lambda x: x[4:] + ' ' * 20)
