In this example, we download the HCP-MMP1.0 parcellation [1] and show it on fsaverage.
Note
The HCP-MMP dataset has license terms restricting its use. Of particular relevance:
“I will acknowledge the use of WU-Minn HCP data and data derived from WU-Minn HCP data when publicly presenting any results or algorithms that benefitted from their use.”
| [1] | Glasser MF et al. (2016) A multi-modal parcellation of human cerebral cortex. Nature 536:171-178. |
Out:
Reading labels from parcellation..
read 181 labels from /home/ubuntu/mne_data/MNE-sample-data/subjects/fsaverage/label/lh.HCPMMP1.annot
[done]
# Author: Eric Larson <larson.eric.d@gmail.com>
#
# License: BSD (3-clause)
from surfer import Brain
import mne
subjects_dir = mne.datasets.sample.data_path() + '/subjects'
mne.datasets.fetch_hcp_mmp_parcellation(subjects_dir=subjects_dir,
verbose=True)
labels = mne.read_labels_from_annot(
'fsaverage', 'HCPMMP1', 'lh', subjects_dir=subjects_dir)

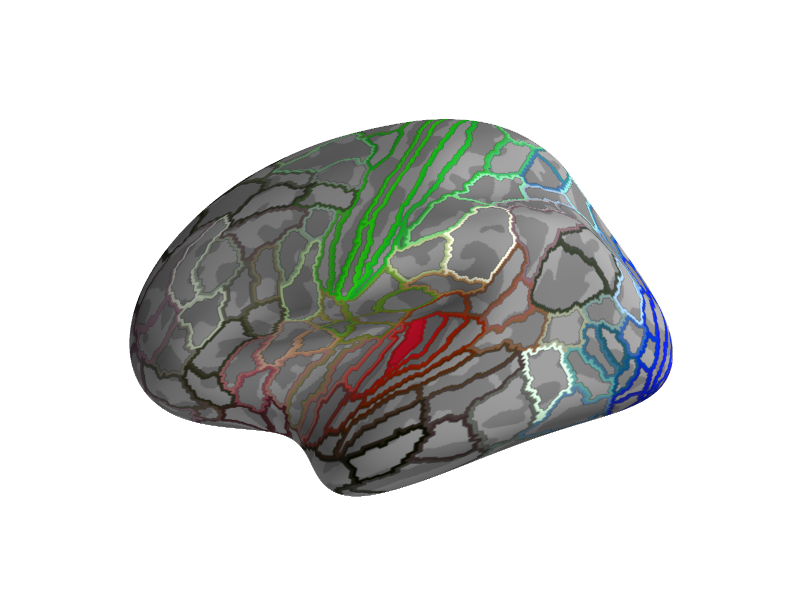

brain = Brain('fsaverage', 'lh', 'inflated', subjects_dir=subjects_dir,
cortex='low_contrast', background='white', size=(800, 600))
brain.add_annotation('HCPMMP1')
aud_label = [label for label in labels if label.name == 'L_A1_ROI-lh'][0]
brain.add_label(aud_label, borders=False)
Total running time of the script: ( 0 minutes 8.032 seconds)
