Show noise levels from empty room data

This shows how to use mne.io.Raw.plot_psd() to examine noise levels of systems. See [1] for an example.

References

[1]Khan S, Cohen D (2013). Note: Magnetic noise from the inner wall of a magnetically shielded room. Review of Scientific Instruments 84:56101. https://doi.org/10.1063/1.4802845
# Author: Eric Larson <larson.eric.d@gmail.com>
#
# License: BSD (3-clause)

import os.path as op
import mne

data_path = mne.datasets.sample.data_path()

raw_erm = mne.io.read_raw_fif(op.join(data_path, 'MEG', 'sample',
                                      'ernoise_raw.fif'), preload=True)

Out:

Opening raw data file /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/ernoise_raw.fif...
Isotrak not found
    Read a total of 3 projection items:
        PCA-v1 (1 x 102)  idle
        PCA-v2 (1 x 102)  idle
        PCA-v3 (1 x 102)  idle
    Range : 19800 ... 85867 =     32.966 ...   142.965 secs
Ready.
Current compensation grade : 0
Reading 0 ... 66067  =      0.000 ...   109.999 secs...

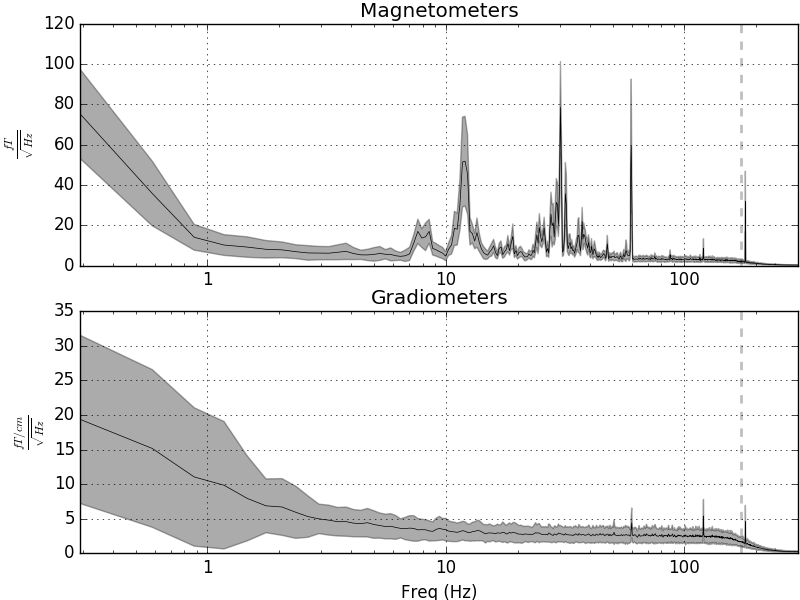

We can plot the absolute noise levels:

raw_erm.plot_psd(tmax=10., average=True, dB=False, xscale='log')
../../_images/sphx_glr_plot_sensor_noise_level_001.png

Out:

Effective window size : 3.410 (s)
Effective window size : 3.410 (s)
