Export epochs to Pandas DataFrame¶

# Author: Denis Engemann <denis.engemann@gmail.com>
#
# License: BSD (3-clause)

import mne
import matplotlib.pyplot as plt
import numpy as np
from mne.datasets import sample

print(__doc__)

data_path = sample.data_path()
raw_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw.fif'
event_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw-eve.fif'

raw = mne.io.read_raw_fif(raw_fname)
raw.set_eeg_reference()  # set EEG average reference

# For simplicity we will only consider the first 10 epochs
events = mne.read_events(event_fname)[:10]

# Add a bad channel
raw.info['bads'] += ['MEG 2443']
picks = mne.pick_types(raw.info, meg='grad', eeg=False, eog=True,
                       stim=False, exclude='bads')

tmin, tmax = -0.2, 0.5
baseline = (None, 0)
reject = dict(grad=4000e-13, eog=150e-6)

event_id = dict(auditory_l=1, auditory_r=2, visual_l=3, visual_r=4)

epochs = mne.Epochs(raw, events, event_id, tmin, tmax, proj=True, picks=picks,
                    baseline=baseline, preload=True, reject=reject)

# The following parameters will scale the channels and times plotting
# friendly. The info columns 'epoch' and 'time' will be used as hierarchical
# index whereas the condition is treated as categorial data. Note that
# this is optional. By passing None you could also print out all nesting
# factors in a long table style commonly used for analyzing repeated measure
# designs.

index, scale_time, scalings = ['epoch', 'time'], 1e3, dict(grad=1e13)

df = epochs.to_data_frame(picks=None, scalings=scalings, scale_time=scale_time,
                          index=index)

# Create MEG channel selector and drop EOG channel.
meg_chs = [c for c in df.columns if 'MEG' in c]

df.pop('EOG 061')  # this works just like with a list.

# Pandas is using a MultiIndex or hierarchical index to handle higher
# dimensionality while at the same time representing data in a flat 2d manner.

print(df.index.names, df.index.levels)

# Inspecting the index object unveils that 'epoch', 'time' are used
# for subsetting data. We can take advantage of that by using the
# .ix attribute, where in this case the first position indexes the MultiIndex
# and the second the columns, that is, channels.

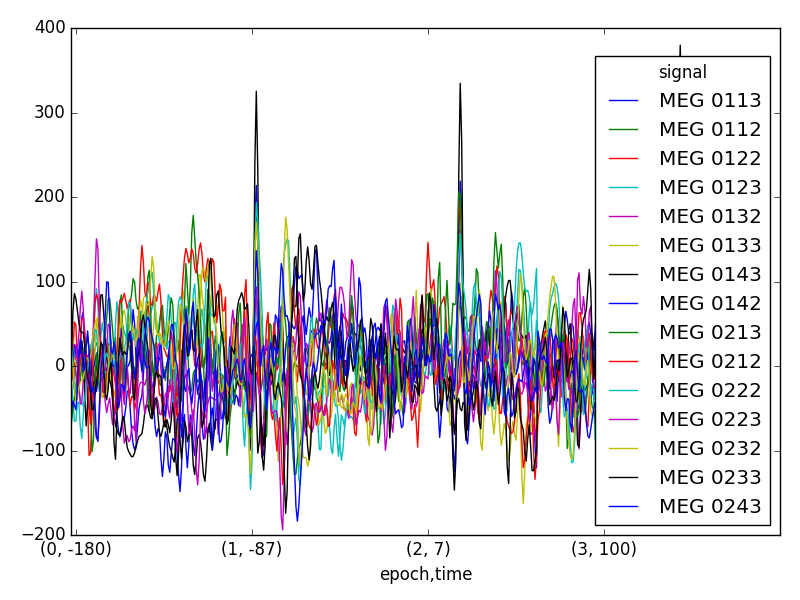

# Plot some channels across the first three epochs
xticks, sel = np.arange(3, 600, 120), meg_chs[:15]
df.ix[:3, sel].plot(xticks=xticks)
mne.viz.tight_layout()

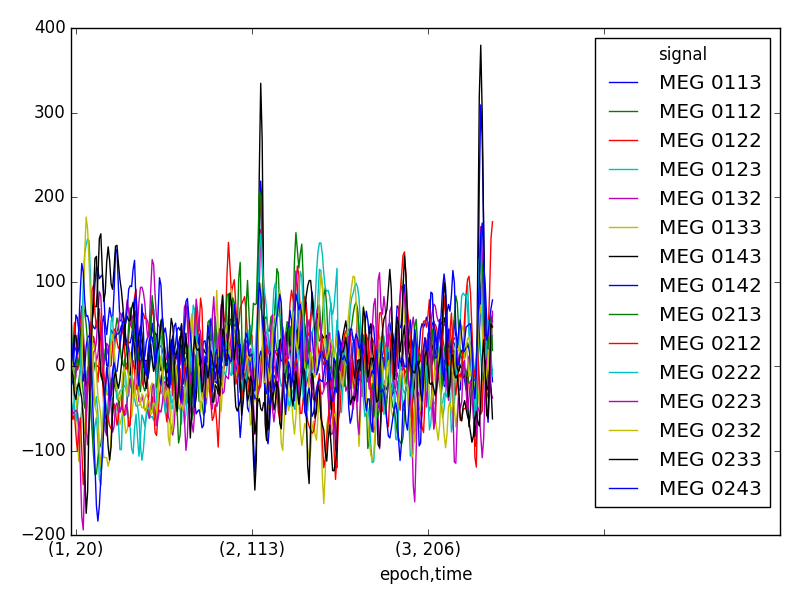

# slice the time starting at t0 in epoch 2 and ending 500ms after
# the base line in epoch 3. Note that the second part of the tuple
# represents time in milliseconds from stimulus onset.
df.ix[(1, 0):(3, 500), sel].plot(xticks=xticks)
mne.viz.tight_layout()

# Note: For convenience the index was converted from floating point values
# to integer values. To restore the original values you can e.g. say
# df['times'] = np.tile(epoch.times, len(epochs_times)

# We now reset the index of the DataFrame to expose some Pandas
# pivoting functionality. To simplify the groupby operation we
# we drop the indices to treat epoch and time as categroial factors.

df = df.reset_index()

# The ensuing DataFrame then is split into subsets reflecting a crossing
# between condition and trial number. The idea is that we can broadcast
# operations into each cell simultaneously.

factors = ['condition', 'epoch']
sel = factors + ['MEG 1332', 'MEG 1342']
grouped = df[sel].groupby(factors)

# To make the plot labels more readable let's edit the values of 'condition'.
df.condition = df.condition.apply(lambda name: name + ' ')

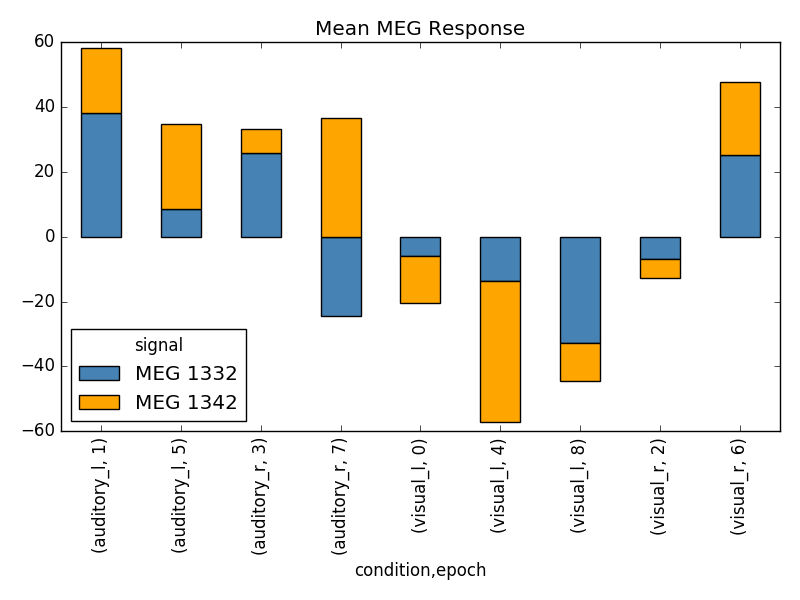

# Now we compare the mean of two channels response across conditions.
grouped.mean().plot(kind='bar', stacked=True, title='Mean MEG Response',
                    color=['steelblue', 'orange'])
mne.viz.tight_layout()

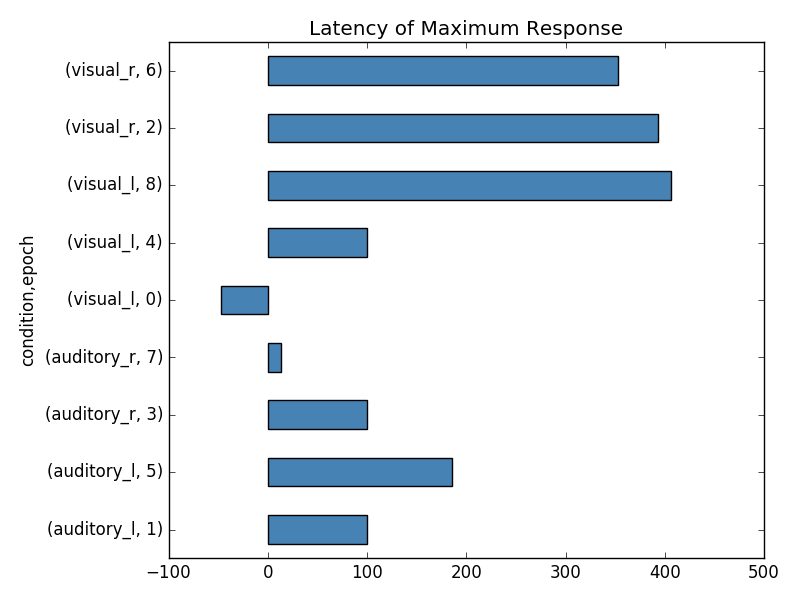

# We can even accomplish more complicated tasks in a few lines calling
# apply method and passing a function. Assume we wanted to know the time
# slice of the maximum response for each condition.

max_latency = grouped[sel[2]].apply(lambda x: df.time[x.argmax()])

print(max_latency)

# Then make the plot labels more readable let's edit the values of 'condition'.
df.condition = df.condition.apply(lambda name: name + ' ')

plt.figure()
max_latency.plot(kind='barh', title='Latency of Maximum Response',
                 color=['steelblue'])
mne.viz.tight_layout()

# Finally, we will again remove the index to create a proper data table that
# can be used with statistical packages like statsmodels or R.

final_df = max_latency.reset_index()
final_df.rename(columns={0: sel[2]})  # as the index is oblivious of names.

# The index is now written into regular columns so it can be used as factor.
print(final_df)

plt.show()

# To save as csv file, uncomment the next line.
# final_df.to_csv('my_epochs.csv')

# Note. Data Frames can be easily concatenated, e.g., across subjects.
# E.g. say:
#
# import pandas as pd
# group = pd.concat([df_1, df_2])
# group['subject'] = np.r_[np.ones(len(df_1)), np.ones(len(df_2)) + 1]
