Mass-univariate twoway repeated measures ANOVA on single trial power¶

data_path = sample.data_path()
raw_fname = data_path + '/MEG/sample/sample_audvis_raw.fif'
event_fname = data_path + '/MEG/sample/sample_audvis_raw-eve.fif'
tmin, tmax = -0.2, 0.5

# Setup for reading the raw data
raw = mne.io.read_raw_fif(raw_fname)
events = mne.read_events(event_fname)

include = []
raw.info['bads'] += ['MEG 2443']  # bads

# picks MEG gradiometers
picks = mne.pick_types(raw.info, meg='grad', eeg=False, eog=True,
                       stim=False, include=include, exclude='bads')

ch_name = 'MEG 1332'

# Load conditions
reject = dict(grad=4000e-13, eog=150e-6)
event_id = dict(aud_l=1, aud_r=2, vis_l=3, vis_r=4)
epochs = mne.Epochs(raw, events, event_id, tmin, tmax,
                    picks=picks, baseline=(None, 0), preload=True,
                    reject=reject)
epochs.pick_channels([ch_name])  # restrict example to one channel

epochs.equalize_event_counts(event_id)

# Factor to down-sample the temporal dimension of the TFR computed by
# tfr_morlet.
decim = 2
frequencies = np.arange(7, 30, 3)  # define frequencies of interest
n_cycles = frequencies / frequencies[0]
zero_mean = False  # don't correct morlet wavelet to be of mean zero
# To have a true wavelet zero_mean should be True but here for illustration
# purposes it helps to spot the evoked response.

epochs_power = list()
for condition in [epochs[k] for k in event_id]:
    this_tfr = tfr_morlet(condition, frequencies, n_cycles=n_cycles,
                          decim=decim, average=False, zero_mean=zero_mean,
                          return_itc=False)
    this_tfr.apply_baseline(mode='ratio', baseline=(None, 0))
    this_power = this_tfr.data[:, 0, :, :]  # we only have one channel.
    epochs_power.append(this_power)

n_conditions = len(epochs.event_id)
n_replications = epochs.events.shape[0] / n_conditions

factor_levels = [2, 2]  # number of levels in each factor
effects = 'A*B'  # this is the default signature for computing all effects
# Other possible options are 'A' or 'B' for the corresponding main effects
# or 'A:B' for the interaction effect only (this notation is borrowed from the
# R formula language)
n_frequencies = len(frequencies)
times = 1e3 * epochs.times[::decim]
n_times = len(times)

data = np.swapaxes(np.asarray(epochs_power), 1, 0)
# reshape last two dimensions in one mass-univariate observation-vector
data = data.reshape(n_replications, n_conditions, n_frequencies * n_times)

# so we have replications * conditions * observations:
print(data.shape)

fvals, pvals = f_mway_rm(data, factor_levels, effects=effects)

effect_labels = ['modality', 'location', 'modality by location']

# let's visualize our effects by computing f-images
for effect, sig, effect_label in zip(fvals, pvals, effect_labels):
    plt.figure()
    # show naive F-values in gray
    plt.imshow(effect.reshape(8, 211), cmap=plt.cm.gray, extent=[times[0],
               times[-1], frequencies[0], frequencies[-1]], aspect='auto',
               origin='lower')
    # create mask for significant Time-frequency locations
    effect = np.ma.masked_array(effect, [sig > .05])
    plt.imshow(effect.reshape(8, 211), cmap='RdBu_r', extent=[times[0],
               times[-1], frequencies[0], frequencies[-1]], aspect='auto',
               origin='lower')
    plt.colorbar()
    plt.xlabel('Time (ms)')
    plt.ylabel('Frequency (Hz)')

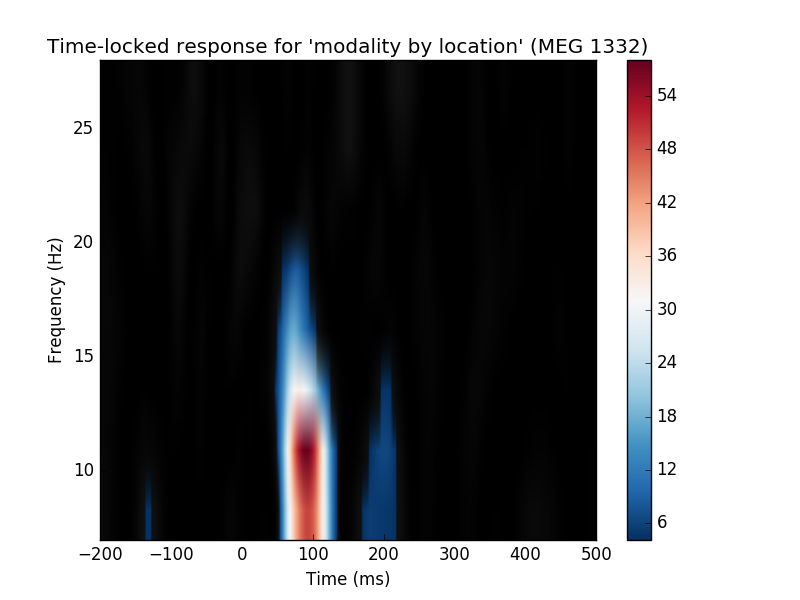

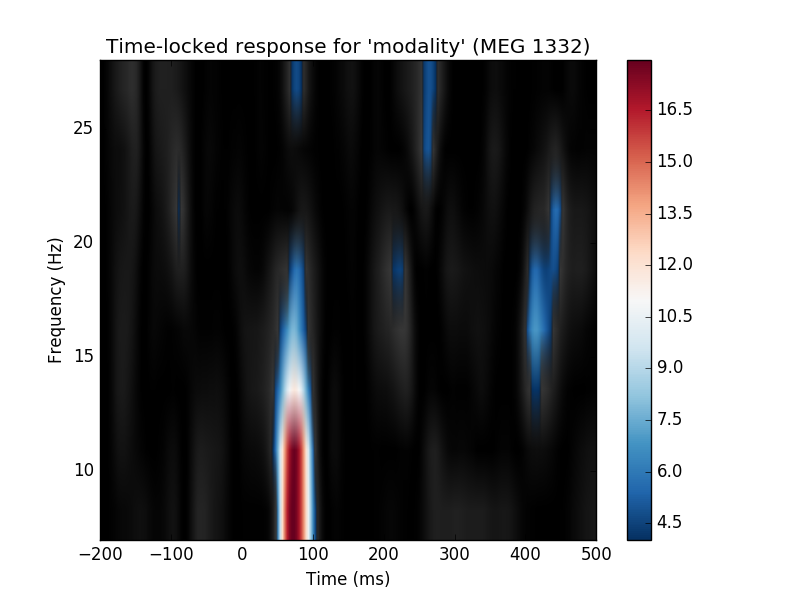

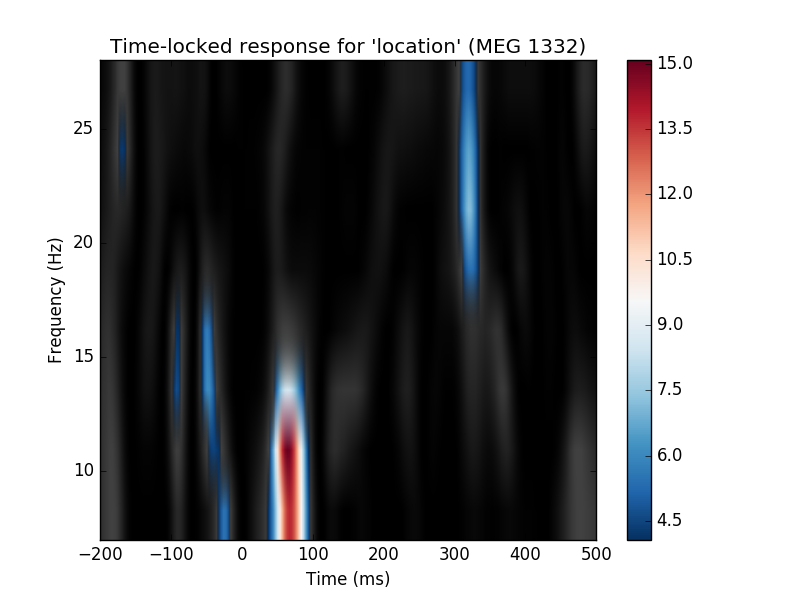

    plt.title(r"Time-locked response for '%s' (%s)" % (effect_label, ch_name))
    plt.show()

effects = 'A:B'

def stat_fun(*args):
    return f_mway_rm(np.swapaxes(args, 1, 0), factor_levels=factor_levels,
                     effects=effects, return_pvals=False)[0]

# The ANOVA returns a tuple f-values and p-values, we will pick the former.
pthresh = 0.00001  # set threshold rather high to save some time
f_thresh = f_threshold_mway_rm(n_replications, factor_levels, effects,
                               pthresh)
tail = 1  # f-test, so tail > 0
n_permutations = 256  # Save some time (the test won't be too sensitive ...)
T_obs, clusters, cluster_p_values, h0 = mne.stats.permutation_cluster_test(
    epochs_power, stat_fun=stat_fun, threshold=f_thresh, tail=tail, n_jobs=1,
    n_permutations=n_permutations, buffer_size=None)

good_clusers = np.where(cluster_p_values < .05)[0]
T_obs_plot = np.ma.masked_array(T_obs,
                                np.invert(clusters[np.squeeze(good_clusers)]))

plt.figure()
for f_image, cmap in zip([T_obs, T_obs_plot], [plt.cm.gray, 'RdBu_r']):
    plt.imshow(f_image, cmap=cmap, extent=[times[0], times[-1],
               frequencies[0], frequencies[-1]], aspect='auto',
               origin='lower')
plt.xlabel('Time (ms)')
plt.ylabel('Frequency (Hz)')

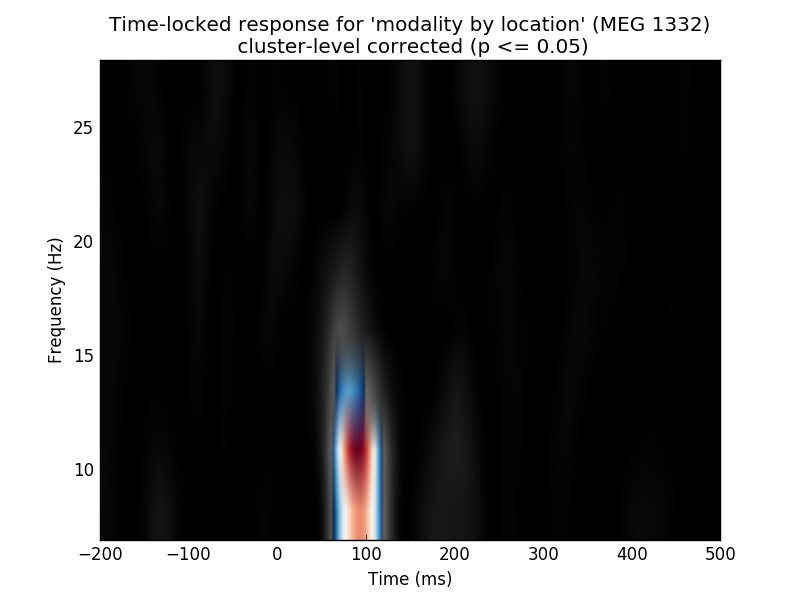

plt.title("Time-locked response for 'modality by location' (%s)\n"
          " cluster-level corrected (p <= 0.05)" % ch_name)
plt.show()

mask, _ = fdr_correction(pvals[2])
T_obs_plot2 = np.ma.masked_array(T_obs, np.invert(mask))

plt.figure()
for f_image, cmap in zip([T_obs, T_obs_plot2], [plt.cm.gray, 'RdBu_r']):
    plt.imshow(f_image, cmap=cmap, extent=[times[0], times[-1],
               frequencies[0], frequencies[-1]], aspect='auto',
               origin='lower')

plt.xlabel('Time (ms)')
plt.ylabel('Frequency (Hz)')

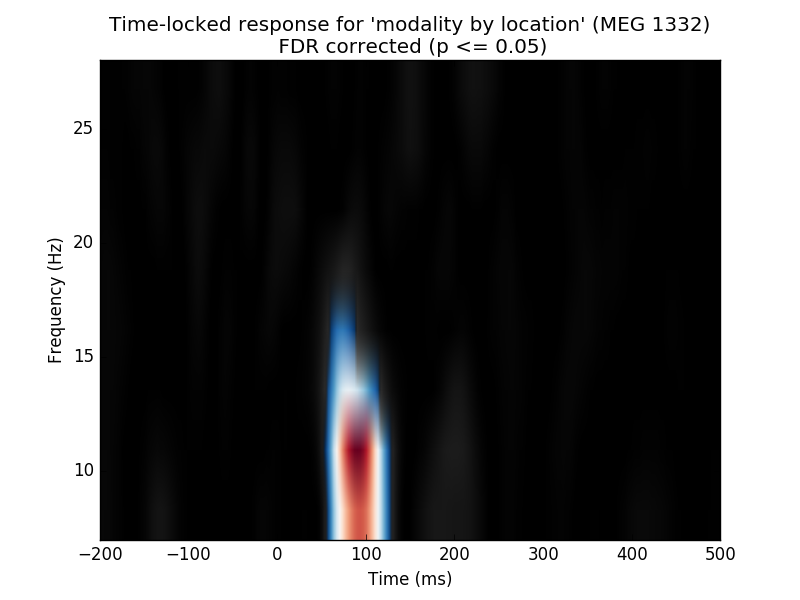

plt.title("Time-locked response for 'modality by location' (%s)\n"
          " FDR corrected (p <= 0.05)" % ch_name)
plt.show()
