Plot BEM surfaces used for forward solution generation.
# Author: Jaakko Leppakangas <jaeilepp@gmail.com>
#
# License: BSD (3-clause)
import os.path as op
from mayavi import mlab
import mne
from mne.datasets.sample import data_path
print(__doc__)
data_path = data_path()
fname = op.join(data_path, 'MEG', 'sample', 'sample_audvis_raw.fif')
raw = mne.io.read_raw_fif(fname)
subjects_dir = op.join(data_path, 'subjects')
Out:
Opening raw data file /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis_raw.fif...
Read a total of 3 projection items:
PCA-v1 (1 x 102) idle
PCA-v2 (1 x 102) idle
PCA-v3 (1 x 102) idle
Range : 25800 ... 192599 = 42.956 ... 320.670 secs
Ready.
Current compensation grade : 0

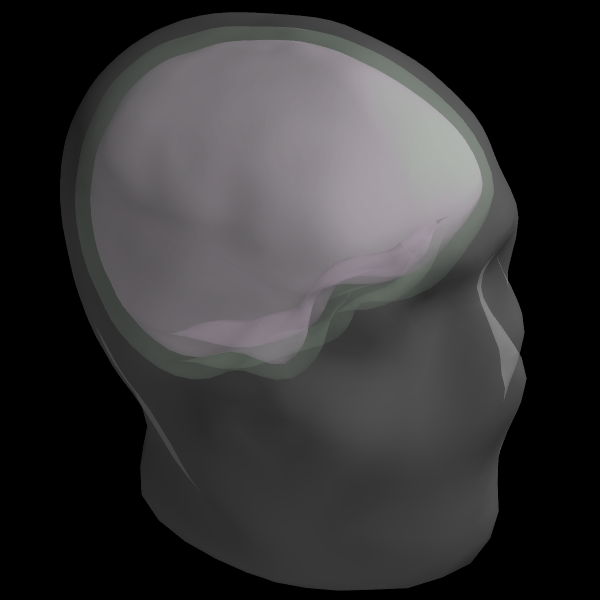

Here we use mne.viz.plot_trans() with trans=None to plot only the
surfaces without any transformations. For plotting transformation, see
Head model and forward computation.
mne.viz.plot_trans(raw.info, trans=None, subject='sample',
subjects_dir=subjects_dir, meg_sensors=[], eeg_sensors=[],
head='outer_skin', skull=['inner_skull', 'outer_skull'])
mlab.view(40, 60)
Out:
Using surface from /home/ubuntu/mne_data/MNE-sample-data/subjects/sample/bem/sample-5120-5120-5120-bem.fif.
Using /home/ubuntu/mne_data/MNE-sample-data/subjects/sample/bem/flash/inner_skull.surf for head surface.
Using /home/ubuntu/mne_data/MNE-sample-data/subjects/sample/bem/flash/outer_skull.surf for head surface.
Total running time of the script: ( 0 minutes 0.487 seconds)
