See Wipf et al. “A unified Bayesian framework for MEG/EEG source imaging.” NeuroImage, vol. 44, no. 3, pp. 947?66, Mar. 2009.
Out:
Reading /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis-ave.fif ...
Read a total of 4 projection items:
PCA-v1 (1 x 102) active
PCA-v2 (1 x 102) active
PCA-v3 (1 x 102) active
Average EEG reference (1 x 60) active
Found the data of interest:
t = -199.80 ... 499.49 ms (Left visual)
0 CTF compensation matrices available
nave = 67 - aspect type = 100
Projections have already been applied. Setting proj attribute to True.
Applying baseline correction (mode: mean)
Reading forward solution from /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis-meg-eeg-oct-6-fwd.fif...
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
2 source spaces read
Desired named matrix (kind = 3523) not available
Read MEG forward solution (7498 sources, 306 channels, free orientations)
Desired named matrix (kind = 3523) not available
Read EEG forward solution (7498 sources, 60 channels, free orientations)
MEG and EEG forward solutions combined
Source spaces transformed to the forward solution coordinate frame
Converting to surface-based source orientations...
Average patch normals will be employed in the rotation to the local surface coordinates....
[done]
366 x 366 full covariance (kind = 1) found.
Read a total of 4 projection items:
PCA-v1 (1 x 102) active
PCA-v2 (1 x 102) active
PCA-v3 (1 x 102) active
Average EEG reference (1 x 60) active
8 projection items activated
EEG regularization : 0.1
Created an SSP operator for EEG (dimension = 1)
MAG regularization : 0.1
Created an SSP operator for MAG (dimension = 3)
GRAD regularization : 0.1
Computing inverse operator with 364 channels.
Created an SSP operator (subspace dimension = 4)
estimated rank (mag + grad): 302
Setting small MEG eigenvalues to zero.
Not doing PCA for MEG.
estimated rank (eeg): 58
Setting small EEG eigenvalues to zero.
Not doing PCA for EEG.
Reducing data rank to 360
Total rank is 360
Whitening lead field matrix.
Applying loose dipole orientations. Loose value of 0.2.
Whitening data matrix.
Iteration: 0 active set size: 22494 convergence: 9.053e-01
Iteration: 8 active set size: 22323 convergence: 1.780e-01
Iteration: 9 active set size: 20868 convergence: 1.290e-01
Iteration: 10 active set size: 17409 convergence: 1.007e-01
Iteration: 11 active set size: 13170 convergence: 9.034e-02
Iteration: 12 active set size: 10143 convergence: 8.072e-02
Iteration: 13 active set size: 8388 convergence: 7.193e-02
Iteration: 14 active set size: 7236 convergence: 6.412e-02
Iteration: 15 active set size: 6348 convergence: 5.725e-02
Iteration: 16 active set size: 5700 convergence: 5.125e-02
Iteration: 17 active set size: 5160 convergence: 4.603e-02
Iteration: 18 active set size: 4671 convergence: 4.147e-02
Iteration: 19 active set size: 4281 convergence: 3.750e-02
Iteration: 20 active set size: 3948 convergence: 3.402e-02
Iteration: 21 active set size: 3633 convergence: 3.098e-02
Iteration: 22 active set size: 3408 convergence: 2.830e-02
Iteration: 23 active set size: 3135 convergence: 2.591e-02
Iteration: 24 active set size: 2922 convergence: 2.377e-02
Iteration: 25 active set size: 2679 convergence: 2.184e-02
Iteration: 26 active set size: 2517 convergence: 2.010e-02
Iteration: 27 active set size: 2307 convergence: 1.851e-02
Iteration: 28 active set size: 2157 convergence: 1.705e-02
Iteration: 29 active set size: 2022 convergence: 1.571e-02
Iteration: 30 active set size: 1884 convergence: 1.448e-02
Iteration: 31 active set size: 1782 convergence: 1.334e-02
Iteration: 32 active set size: 1653 convergence: 1.229e-02
Iteration: 33 active set size: 1548 convergence: 1.132e-02
Iteration: 34 active set size: 1467 convergence: 1.042e-02
Iteration: 35 active set size: 1359 convergence: 9.596e-03
Iteration: 36 active set size: 1302 convergence: 8.831e-03
Iteration: 37 active set size: 1224 convergence: 8.126e-03
Iteration: 38 active set size: 1155 convergence: 7.477e-03
Iteration: 39 active set size: 1071 convergence: 6.879e-03
Iteration: 40 active set size: 1014 convergence: 6.330e-03
Iteration: 41 active set size: 969 convergence: 5.826e-03
Iteration: 42 active set size: 909 convergence: 5.363e-03
Iteration: 43 active set size: 846 convergence: 4.938e-03
Iteration: 44 active set size: 789 convergence: 4.550e-03
Iteration: 45 active set size: 759 convergence: 4.193e-03
Iteration: 46 active set size: 714 convergence: 3.867e-03
Iteration: 47 active set size: 690 convergence: 3.569e-03
Iteration: 48 active set size: 663 convergence: 3.295e-03
Iteration: 49 active set size: 633 convergence: 3.045e-03
Iteration: 50 active set size: 615 convergence: 2.816e-03
Iteration: 51 active set size: 591 convergence: 2.605e-03
Iteration: 52 active set size: 558 convergence: 2.413e-03
Iteration: 53 active set size: 540 convergence: 2.237e-03
Iteration: 54 active set size: 525 convergence: 2.075e-03
Iteration: 55 active set size: 501 convergence: 1.926e-03
Iteration: 56 active set size: 486 convergence: 1.790e-03
Iteration: 57 active set size: 471 convergence: 1.665e-03
Iteration: 58 active set size: 459 convergence: 1.549e-03
Iteration: 59 active set size: 444 convergence: 1.443e-03
Iteration: 60 active set size: 420 convergence: 1.346e-03
Iteration: 61 active set size: 405 convergence: 1.269e-03
Iteration: 62 active set size: 393 convergence: 1.198e-03
Iteration: 63 active set size: 369 convergence: 1.133e-03
Iteration: 64 active set size: 351 convergence: 1.071e-03
Iteration: 65 active set size: 348 convergence: 1.014e-03
Iteration: 66 active set size: 336 convergence: 9.612e-04
Iteration: 67 active set size: 324 convergence: 9.116e-04
Iteration: 68 active set size: 306 convergence: 8.652e-04
Iteration: 69 active set size: 294 convergence: 8.218e-04
Iteration: 70 active set size: 282 convergence: 7.812e-04
Iteration: 71 active set size: 273 convergence: 7.432e-04
Iteration: 72 active set size: 258 convergence: 7.077e-04
Iteration: 73 active set size: 246 convergence: 6.743e-04
Iteration: 74 active set size: 240 convergence: 6.431e-04
Iteration: 75 active set size: 228 convergence: 6.137e-04
Iteration: 76 active set size: 216 convergence: 5.862e-04
Iteration: 77 active set size: 204 convergence: 5.603e-04
Iteration: 78 active set size: 195 convergence: 5.360e-04
Iteration: 80 active set size: 192 convergence: 4.916e-04
Iteration: 81 active set size: 186 convergence: 4.713e-04
Iteration: 82 active set size: 180 convergence: 4.522e-04
Iteration: 83 active set size: 177 convergence: 4.341e-04
Iteration: 84 active set size: 174 convergence: 4.171e-04
Iteration: 85 active set size: 171 convergence: 4.011e-04
Iteration: 86 active set size: 159 convergence: 3.859e-04
Iteration: 87 active set size: 153 convergence: 3.715e-04
Iteration: 88 active set size: 147 convergence: 3.580e-04
Iteration: 89 active set size: 144 convergence: 3.451e-04
Iteration: 91 active set size: 138 convergence: 3.214e-04
Iteration: 92 active set size: 135 convergence: 3.104e-04
Iteration: 93 active set size: 126 convergence: 3.001e-04
Iteration: 96 active set size: 123 convergence: 2.719e-04
Iteration: 97 active set size: 117 convergence: 2.634e-04
Iteration: 99 active set size: 114 convergence: 2.477e-04
Iteration: 101 active set size: 111 convergence: 2.334e-04
Iteration: 102 active set size: 108 convergence: 2.267e-04
Iteration: 104 active set size: 102 convergence: 2.143e-04
Iteration: 105 active set size: 99 convergence: 2.085e-04
Iteration: 106 active set size: 90 convergence: 2.029e-04
Iteration: 108 active set size: 87 convergence: 1.925e-04
Iteration: 115 active set size: 84 convergence: 1.624e-04
Iteration: 117 active set size: 81 convergence: 1.552e-04
Iteration: 119 active set size: 75 convergence: 1.486e-04
Iteration: 120 active set size: 72 convergence: 1.454e-04
Iteration: 121 active set size: 69 convergence: 1.424e-04
Iteration: 127 active set size: 66 convergence: 1.264e-04
Iteration: 130 active set size: 63 convergence: 1.196e-04
Iteration: 131 active set size: 60 convergence: 1.175e-04
Iteration: 135 active set size: 57 convergence: 1.097e-04
Iteration: 136 active set size: 54 convergence: 1.079e-04
Iteration: 143 active set size: 51 convergence: 9.666e-05
Iteration: 147 active set size: 48 convergence: 9.121e-05
Iteration: 148 active set size: 42 convergence: 8.994e-05
Iteration: 151 active set size: 39 convergence: 8.634e-05
Iteration: 156 active set size: 36 convergence: 8.094e-05
Iteration: 190 active set size: 33 convergence: 5.690e-05
Iteration: 224 active set size: 30 convergence: 4.381e-05
Iteration: 242 active set size: 27 convergence: 3.939e-05
Iteration: 282 active set size: 24 convergence: 3.121e-05
Iteration: 305 active set size: 21 convergence: 2.736e-05
Iteration: 389 active set size: 18 convergence: 1.706e-05
Iteration: 494 active set size: 15 convergence: 9.581e-06
Iteration: 536 active set size: 12 convergence: 7.628e-06
Iteration: 917 active set size: 12 convergence: 9.960e-07
Convergence reached !
4 projection items deactivated
Created an SSP operator (subspace dimension = 4)
4 projection items activated
SSP projectors applied...
0 projection items deactivated
combining the current components...
Total number of active sources: 4
# Author: Martin Luessi <mluessi@nmr.mgh.harvard.edu>
#
# License: BSD (3-clause)
import numpy as np
import mne
from mne.datasets import sample
from mne.inverse_sparse import gamma_map
from mne.viz import plot_sparse_source_estimates
print(__doc__)
data_path = sample.data_path()
subjects_dir = data_path + '/subjects'
fwd_fname = data_path + '/MEG/sample/sample_audvis-meg-eeg-oct-6-fwd.fif'
evoked_fname = data_path + '/MEG/sample/sample_audvis-ave.fif'
cov_fname = data_path + '/MEG/sample/sample_audvis-cov.fif'
# Read the evoked response and crop it
condition = 'Left visual'
evoked = mne.read_evokeds(evoked_fname, condition=condition,
baseline=(None, 0))
evoked.crop(tmin=-50e-3, tmax=300e-3)
# Read the forward solution
forward = mne.read_forward_solution(fwd_fname, surf_ori=True,
force_fixed=False)
# Read noise noise covariance matrix and regularize it
cov = mne.read_cov(cov_fname)
cov = mne.cov.regularize(cov, evoked.info)
# Run the Gamma-MAP method
alpha = 0.5
stc, residual = gamma_map(evoked, forward, cov, alpha, xyz_same_gamma=True,
return_residual=True)
# View in 2D and 3D ("glass" brain like 3D plot)
# Show the sources as spheres scaled by their strength
scale_factors = np.max(np.abs(stc.data), axis=1)
scale_factors = 0.5 * (1 + scale_factors / np.max(scale_factors))

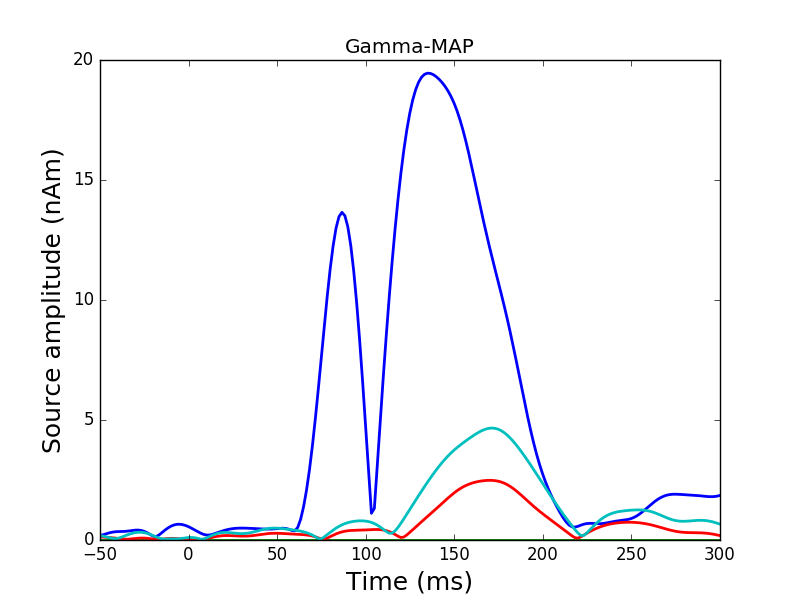

plot_sparse_source_estimates(
forward['src'], stc, bgcolor=(1, 1, 1),
modes=['sphere'], opacity=0.1, scale_factors=(scale_factors, None),
fig_name="Gamma-MAP")
# Show the evoked response and the residual for gradiometers
ylim = dict(grad=[-120, 120])
evoked.pick_types(meg='grad', exclude='bads')
evoked.plot(titles=dict(grad='Evoked Response Gradiometers'), ylim=ylim,
proj=True)
residual.pick_types(meg='grad', exclude='bads')

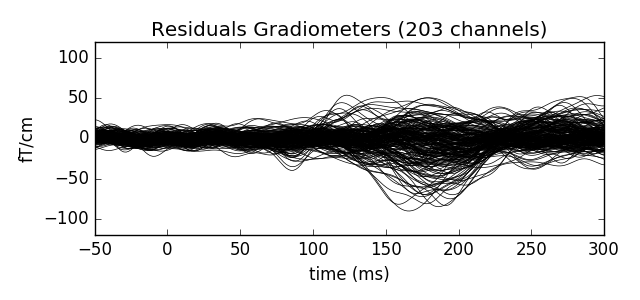

residual.plot(titles=dict(grad='Residuals Gradiometers'), ylim=ylim,
proj=True)
Total running time of the script: ( 1 minutes 10.858 seconds)
