XDAWN filters are trained from epochs, signal is projected in the sources space and then projected back in the sensor space using only the first two XDAWN components. The process is similar to an ICA, but is supervised in order to maximize the signal to signal + noise ratio of the evoked response.
Warning
As this denoising method exploits the known events to maximize SNR of the contrast between conditions it can lead to overfitting. To avoid a statistical analysis problem you should split epochs used in fit with the ones used in apply method.
[1] Rivet, B., Souloumiac, A., Attina, V., & Gibert, G. (2009). xDAWN algorithm to enhance evoked potentials: application to brain-computer interface. Biomedical Engineering, IEEE Transactions on, 56(8), 2035-2043.
[2] Rivet, B., Cecotti, H., Souloumiac, A., Maby, E., & Mattout, J. (2011, August). Theoretical analysis of xDAWN algorithm: application to an efficient sensor selection in a P300 BCI. In Signal Processing Conference, 2011 19th European (pp. 1382-1386). IEEE.
# Authors: Alexandre Barachant <alexandre.barachant@gmail.com>
#
# License: BSD (3-clause)
from mne import (io, compute_raw_covariance, read_events, pick_types, Epochs)
from mne.datasets import sample
from mne.preprocessing import Xdawn
from mne.viz import plot_epochs_image
print(__doc__)
data_path = sample.data_path()
Set parameters and read data
raw_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw.fif'
event_fname = data_path + '/MEG/sample/sample_audvis_filt-0-40_raw-eve.fif'
tmin, tmax = -0.1, 0.3
event_id = dict(vis_r=4)
# Setup for reading the raw data
raw = io.read_raw_fif(raw_fname, preload=True)
raw.filter(1, 20) # replace baselining with high-pass
events = read_events(event_fname)
raw.info['bads'] = ['MEG 2443'] # set bad channels
picks = pick_types(raw.info, meg=True, eeg=False, stim=False, eog=False,
exclude='bads')
# Epoching
epochs = Epochs(raw, events, event_id, tmin, tmax, proj=False,
picks=picks, baseline=None, preload=True,
verbose=False)
# Plot image epoch before xdawn

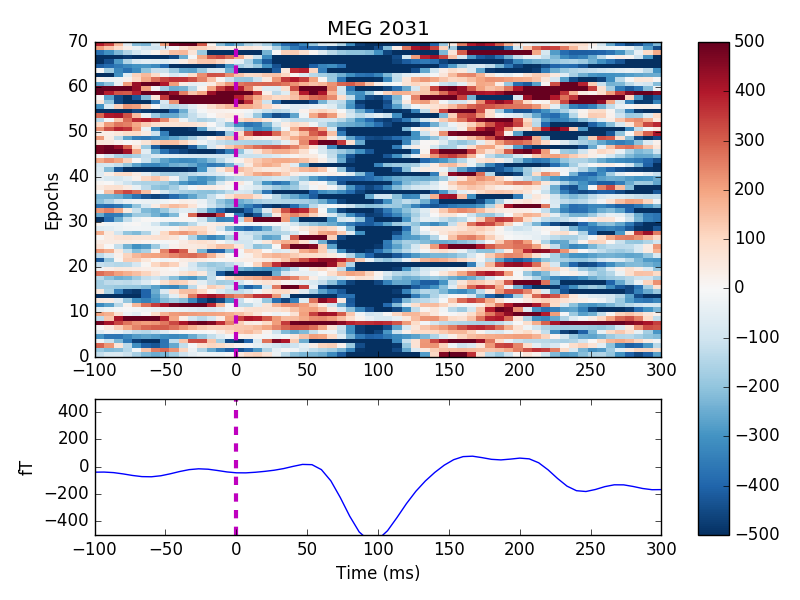

plot_epochs_image(epochs['vis_r'], picks=[230], vmin=-500, vmax=500)
# Estimates signal covariance
signal_cov = compute_raw_covariance(raw, picks=picks)
# Xdawn instance
xd = Xdawn(n_components=2, signal_cov=signal_cov)
# Fit xdawn
xd.fit(epochs)
# Denoise epochs
epochs_denoised = xd.apply(epochs)
# Plot image epoch after Xdawn

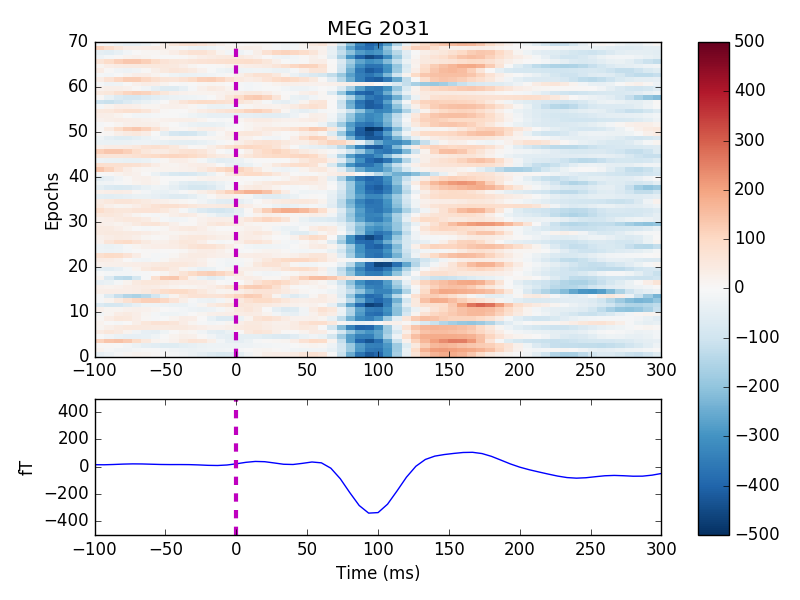

plot_epochs_image(epochs_denoised['vis_r'], picks=[230], vmin=-500, vmax=500)
Out:
Opening raw data file /home/ubuntu/mne_data/MNE-sample-data/MEG/sample/sample_audvis_filt-0-40_raw.fif...
Read a total of 4 projection items:
PCA-v1 (1 x 102) idle
PCA-v2 (1 x 102) idle
PCA-v3 (1 x 102) idle
Average EEG reference (1 x 60) idle
Range : 6450 ... 48149 = 42.956 ... 320.665 secs
Ready.
Current compensation grade : 0
Reading 0 ... 41699 = 0.000 ... 277.709 secs...
Setting up band-pass filter from 1 - 20 Hz
l_trans_bandwidth chosen to be 1.0 Hz
h_trans_bandwidth chosen to be 5.0 Hz
Filter length of 991 samples (6.600 sec) selected
Using up to 1388 segments
Number of samples used : 41640
[done]
Transforming to Xdawn space
Zeroing out 303 Xdawn components
Inverse transforming to sensor space
Total running time of the script: ( 0 minutes 5.464 seconds)
