Decoding¶

Scaler¶

The mne.decoding.Scaler will standardize the data based on channel scales. In the simplest modes scalings=None or scalings=dict(...), each data channel type (e.g., mag, grad, eeg) is treated separately and scaled by a constant. This is the approach used by e.g., mne.compute_covariance() to standardize channel scales.

If scalings='mean' or scalings='median', each channel is scaled using empirical measures. Each channel is scaled independently by the mean and standand deviation, or median and interquartile range, respectively, across all epochs and time points during mne.decoding.Scaler.fit (during training). The mne.decoding.Scaler.transform() method is called to transform data (training or test set) by scaling all time points and epochs on a channel-by-channel basis. To perform both the fit and transform operations in a single call, the mne.decoding.Scaler.fit_transform() method may be used. To invert the transform, mne.decoding.Scaler.inverse_transform() can be used. For scalings='median', scikit-learn version 0.17+ is required.

Vectorizer¶

Scikit-learn API provides functionality to chain transformers and estimators by using sklearn.pipeline.Pipeline. We can construct decoding pipelines and perform cross-validation and grid-search. However scikit-learn transformers and estimators generally expect 2D data (n_samples * n_features), whereas MNE transformers typically output data with a higher dimensionality (e.g. n_samples * n_channels * n_frequencies * n_times). A Vectorizer therefore needs to be applied between the MNE and the scikit-learn steps: e.g: make_pipeline(Xdawn(), Vectorizer(), LogisticRegression())

PSDEstimator¶

This estimator computes the power spectral density (PSD) using the multitaper method. It takes a 3D array as input, it into 2D and computes the PSD.

FilterEstimator¶

This estimator filters the 3D epochs data.

Common Spatial Pattern¶

This is a technique to analyze multichannel data based on recordings from two classes. Let \(X \in R^{C\times T}\) be a segment of data with \(C\) channels and \(T\) time points. The data at a single time point is denoted by \(x(t)\) such that \(X=[x(t), x(t+1), ..., x(t+T-1)]\). Common Spatial Pattern (CSP) finds a decomposition that projects the signal in the original sensor space to CSP space using the following transformation:

where each column of \(W \in R^{C\times C}\) is a spatial filter and each row of \(x_{CSP}\) is a CSP component. The matrix \(W\) is also called the de-mixing matrix in other contexts. Let \(\Sigma^{+} \in R^{C\times C}\) and \(\Sigma^{-} \in R^{C\times C}\) be the estimates of the covariance matrices of the two conditions. CSP analysis is given by the simultaneous diagonalization of the two covariance matrices

where \(\lambda^{C}\) is a diagonal matrix whose entries are the eigenvalues of the following generalized eigenvalue problem

Large entries in the diagonal matrix corresponds to a spatial filter which gives high variance in one class but low variance in the other. Thus, the filter facilitates discrimination between the two classes.

xDAWN¶

Xdawn is a spatial filtering method designed to improve the signal to signal + noise ratio (SSNR) of the ERP responses. Xdawn was originally designed for P300 evoked potential by enhancing the target response with respect to the non-target response. The implementation in MNE-Python is a generalization to any type of ERP.

Effect-matched spatial filtering¶

The result is a spatial filter at each time point and a corresponding time course. Intuitively, the result gives the similarity between the filter at each time point and the data vector (sensors) at that time point.

Patterns vs. filters¶

When interpreting the components of the CSP, it is often more intuitive to think about how \(x(t)\) is composed of the different CSP components \(x_{CSP}(t)\). In other words, we can rewrite Equation (1) as follows:

The columns of the matrix \((W^{-1})^T\) are called spatial patterns. This is also called the mixing matrix. The example Linear classifier on sensor data with plot patterns and filters demonstrates the difference between patterns and filters.

Plotting a pattern is as simple as doing:

>>> info = epochs.info
>>> model.plot_patterns(info)  # model is an instantiation of an estimator described in this section

To plot the corresponding filter, you can do:

>>> model.plot_filters(info)

Generalization Across Time¶

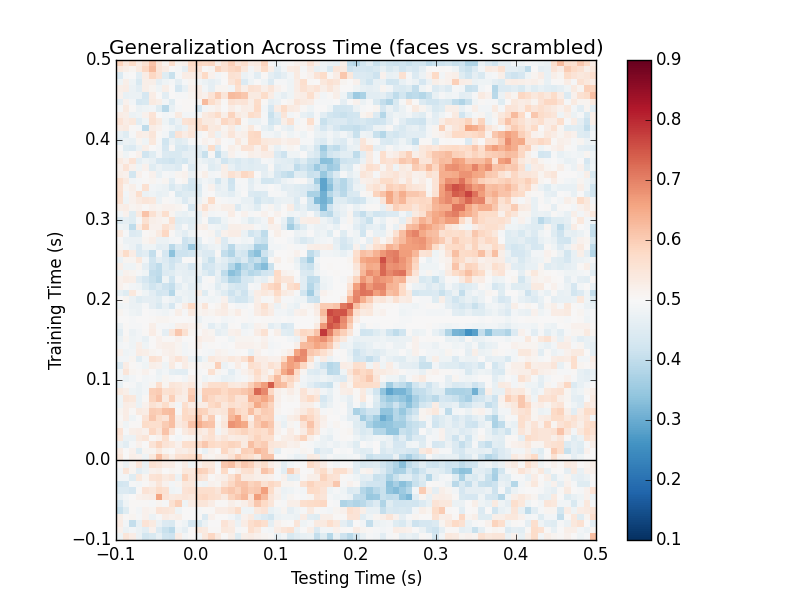

Generalization Across Time (GAT) is a modern strategy to infer neuroscientific conclusions from decoding analysis of sensor-space data. An accuracy matrix is constructed where each point represents the performance of the model trained on one time window and tested on another.

To use this functionality, simply do:

>>> gat = GeneralizationAcrossTime(predict_mode='cross-validation', n_jobs=1)
>>> gat.fit(epochs)
>>> gat.score(epochs)
>>> gat.plot(vmin=0.1, vmax=0.9, title="Generalization Across Time (faces vs. scrambled)")

Time Decoding¶

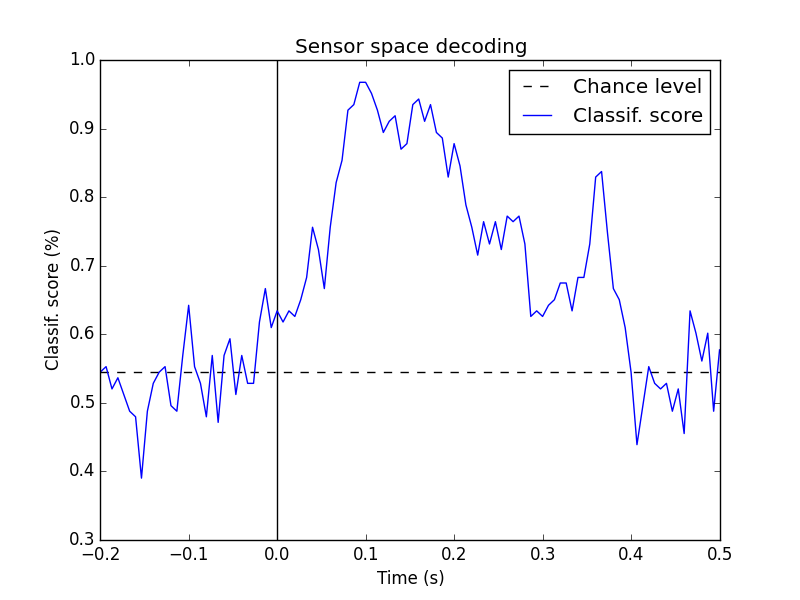

In this strategy, a model trained on one time window is tested on the same time window. A moving time window will thus yield an accuracy curve similar to an ERP, but is considered more sensitive to effects in some situations. It is related to searchlight-based approaches in fMRI. This is also the diagonal of the GAT matrix.

To generate this plot, you need to initialize a GAT object and then use the method plot_diagonal:

>>> gat.plot_diagonal()
